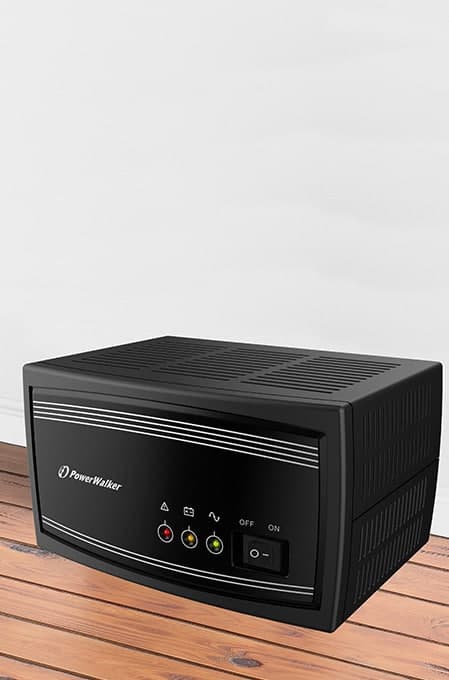

Inverter
INVERTER FEATURES
High Capacity Sine Wave Series – The ultimate sophisticated name of high capacity Inverter/UPS packed with the solution of DSP based technology in Single Phase Input- Single Phase Output & Three phase Input – Three Phase Output. This state of the art technological marvel gives you continuous comfort.
- One Stop Shop Solution: Hulk sine wave series is one stop shop solution for Cold Start, Pollution Free and Sound Free environment parameters, at a lower running cost than those bulky & nasty generators.
- Sine Wave output with constant voltage & frequency.
- Sophisticated Inverter/UPS: Safeguards your highly sophisticated electronic & electrical equipments.
- IBM Charging Technology: Intelligent Battery Management improves Power Factor up to 0.9 & cuts down electricity bills.
- Software Gateway: ASC Technology-Asessing System configuration- It verifies all critical system parameters at the time of start and during the running of the system.
- Inbuilt TDR*: Time Delay Relay – Safegaurds compressor equipped appliances during changeover period with a minimum time delay of 2.5 mins.
- One more feature in outer wing in the form of PLPO: Peak Load-Peak Output – this special feature is incorporated to ensure smooth running and solves the problem of cold start and ensure high peak handling capacity.
- Battery Friendly: Battery Equalizer: Safeguard batteries & assures optimum utilization for a longer life.
- Battery Temperature Control: A new benchmark in the industry that improves battery life by 35%, while standardizing the limit of temperature inside the battery by controlling the parameters of charging.
- LCD & LED Panels: In-built LCD & LED panels for continuous information about its status.
- ECAC Technology: Error Correction Analogue Compare for Low THD- Produces electricity just like as your mains supply.
- Static UPS*: Minimizes the chance of rebooting and restarting of sensitive equipments like Computer, DVD Player, Medical Equipments etc. during changeover period.
High Capacity UPS
High Capacity UPS Range
Capacity | Battery Voltage | Phase Input Output |
| 2/2.5 KVA | 24 V | 1 Phase |
| 3/3.5 KVA | 48 V | 1 Phase |
| 5 KVA | 48/96 V | 1 Phase |
| 6 KVA | 120 V | 1 Phase |
| 7.5 KVA | 120/180 V | 1 Phase |
| 10 KVA | 180 V | 1/3 Phase |
| 15 KVA | 360 V | 1/3 Phase |
Technical Specification
| Model No | 2/2.5/3/3.5/5/6/7.5/10/15 | |
| Battery | 24/48/96/120/180/360 V | |
| Wave Form | Sine Wave | |
| Input AC Range | 110 V - 300 V | |
| Input DC | 24/48/96/120/180/360 V | |
| Efficiency | >90% | |
| Protections | ||
| Overload | 110.00% | |
| Short Circuit | 300.00% | |
| Charging Current | 10 A ± 1 A | |
Solar Panel Range
| 100W/150W/200W/250W/300W | 250W |
| 12V | 24V |
Solar Hybrid PCU
Solar Hybrid PCU Range (DSP Based)
Capacity | Battery Voltage | Phase Input Output |
| 2.5 KVA | 48 V | 1 Phase |
| 3.5 KVA | 48 V | 1 Phase |
| 5 KVA | 48/96 V | 1 Phase |
| 7.5 KVA | 120 V | 1 Phase |
| 10 KVA | 192 V | 1 Phase |
Technical Specification
| Model No | 2.5/3.5 | 5 | 7.5/10 |
| Input DC | 48 | 48/96 | 120/192 |
| Wave Form | DSP Sine Wave | ||
| Input AC Range | 110 V - 300 V | ||
| Efficiency | >90% | ||
| Input Volt Range DC | 44V - 60V±2 | 88V-120V±2 | 110V-150V±2 |
| Solar Charge Controller | |||
| Maximum IP PV Voltage | 25V per 12V solar panel | ||
| Protections | |||
| Overload | 110.00% | ||
| Short Circuit | 300.00% | ||
| Charging Current | >30/40/45 A ± 2A | ||
| Solar Array | Single | ||
Energy-efficient & Sustainable Electrical Solutions
Our Brand Tusker Power offers solar inverters & batteries that are pioneers in offering maximum power backup along with cost efficiency, reliability, safety, and super high performance. Learn more about our exclusive range on the website.
